Billet Rear Oil Separator Cover

オイルセパレータカバーキット

£112.95

The FUJI Racing oil separator plate is the perfect addition when rebuilding your EJ Series engine or when installing a new clutch and flywheel.

Out of stock

Add to Wishlist
Add to Wishlist
SKU: FREN103 Category:

Leak Free Longterm.

The FUJI Racing oil separator plate is the perfect addition when rebuilding your EJ Series engine or when installing a new clutch and flywheel.

The oil separator plate is located on the rear of the engine block and can be seen when the gearbox / bell housing is removed.

Many Subaru EJ boxer engines were fitted with a plastic separator plate from factory (which over time tend to leak due to fatigue caused by age and heat cycles). Later on in the EJ’s history presumably Subaru realised the problem and switched to a thin pressed cover as a more reliable alternative.

The FUJI Racing oil separator plate is based on a very early design that Subaru initially produced which featured a far thicker wall of material, allowing a more uniformed pressure to be applied across the sealing face providing a leak free solution for years to come.

Additional information

Weight 0.43 kg
Dimensions 26 × 13 × 8 cm
Models

Forester SF 96-02, Forester SG 02-08, Forester SH 08-12, Impreza GC/GF/GM 92-00, Impreza GD/GG 00-07, Impreza GR/GV/GH 07 – 14, Legacy BC/BF/BJ 90-94, Legacy BD/BG 94-98, Legacy BE/BH 98-03, Legacy BL/BP 03-09, WRX STi VAB/VAF 14-21

Looks as Good as it Works.

Given the accessibility of removing and installing a new Oil separator plate, many consider it a job which you would only want to carry out once.

In addition to providing leak free certainty for years to come the FUJI separator plate also looks as good as it performs.

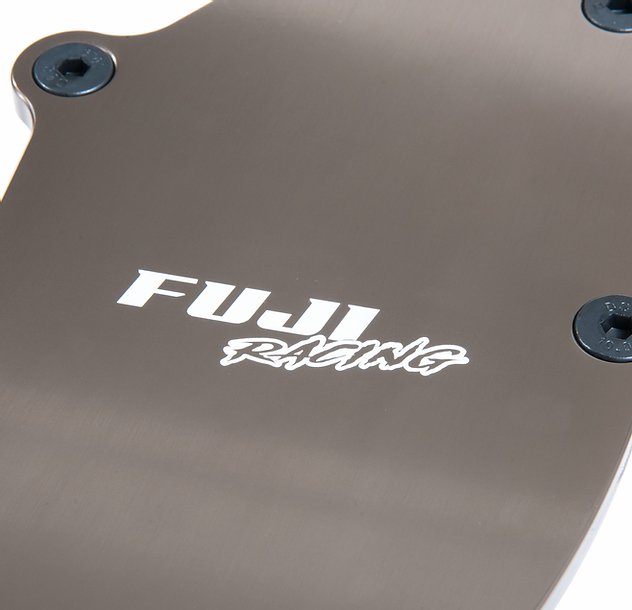

Produced from T6061 Alloy, the plate is then hand polished and anodised to provide the perfect finish, before being granted the laser etched logo of approval.

Model Application:

Suitable for the following models:

  • All EJ Engines

If you are unsure of fitment or application then please contact us with your vehicles chassis number.

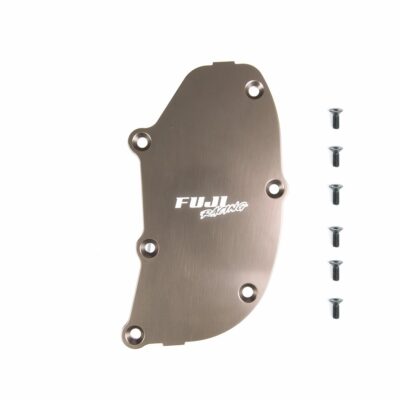

What's in the kit:

  • 1 x Billet Oil Separator cover
  • 6 x Countersunk retaining screws

NOTE: We recommend using thread lock on each of the retaining screws as well as “Threebond” sealer to seal the face of the cover to the mating surface of the engine block.
